485 Metal Standing Seam Roofing Sheet Roll Formimg Machine Standing Seam Roof Machine
Standing seam roof panel Al-Mg-Mn alloy building sheets roll forming machine standing seam metal roof machine.
Specifications
1. Controller: PLC
2. Import components
3.12 months warranty
4. Factory in Hebei
1. Profile drawig:
2. Technical details of standing seam roof panel roll forming machine:
| Item | Parameter |
| Forming Speed | About 0-15m/min |
| Forming station | 17 groups |
| Main Forming Power | 5.5 KW |
| Pump Station Power | 4KW |
| Cutting Type | Hydraulic cutting |
| Machine Type | 16mm side panel welded |
| Voltage | 380v, 50hz,3p or can be customized |
| Diameter of shaft | 70 mm solid, 45# steel with grinding process |
| Rollers | 45#steel with heat treatment and hard chrome coating 0.04-0.05 |
| Cutting Blade | Cr12Mov with hard treatment, HRC52-68 |
| Main frame system | 350H/400 Corrugated Panel steel welded |
| Control System | Delta PLC, INVERTER, AND PLC. Encoder by Omron |
| Measuring accuracy | Precision 3m +/-1mm,with Inverter( Delta Inverter) |
| Transmission | By single chain 1’ |
| Counter | Omron from Japan |
| Language | Chinese-English operation version |
| Total Weight | About 3,500 KGS |
3. Production Flows of standing seam roof panel roll forming machine:
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
3. Advantages of standing seam roof panel roll forming machine:
- We have CE and ISO international certificates, we can ensure the machine quality, it meets all over the world import standards.
- we have 5 professional designers to design molding solutions
- about After-sale ,the overseas commissioning team has an average of 5 years of overseas installation and after-sales experience,
- the machine produce the finished sheet is very beautiful
- Our PLC screen language can be customized according to your country.

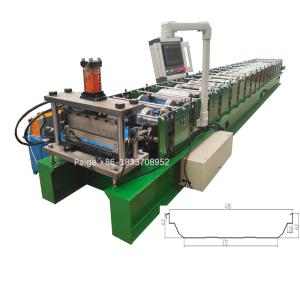

4. Product photos of standing seam roof panel roll forming machine:
5. Application of the standing seam roof panel forming machine
6. FAQ
Q. How long can the machine be built?
A: Generally speaking, the machine takes about 40 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.
Q. Why are your prices higher than others?
A: Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.
Q: Are you manufacture?
Answer: Yes. we are real factory and have over 13 years export expearance.
Welcome to visit us!
