IBR METAL ROOFING SHEET ROLLING MACHINE TO EGYPT BANGLADESH PAKISTANE

Brand Name : JCX

Model Number : roll forming machine

Certification : CE/ISO9001

Place of Origin : Hebei

MOQ : 1

Price : 7999-17999

Payment Terms : L/C, T/T

Supply Ability : 1000

Delivery Time : 45days

Voltage : 380V 50Hz 3phases

Tile type : Colored Steel,double layer roll forming machine

Use : Roof/wall

Condition : New

Weight : 6.5T

Warranty : 1 year

Color : blue

Contact Now

Product Description

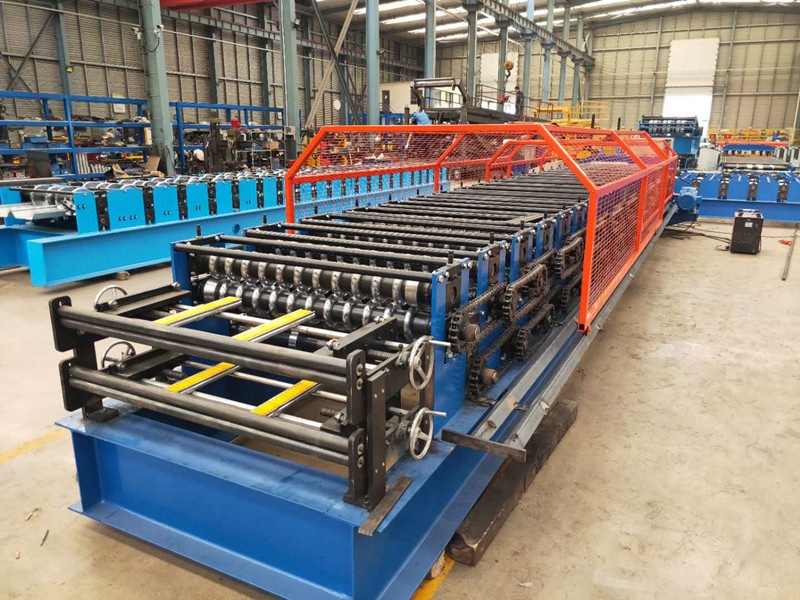

Factory customized colour coated roofing panel double layer rolling machine
double layer roll forming machine is designed to make ibr and corrugated roof sheet.If you want to start roofing business,ibr and corrugated roof sheet are best choices for you.In african market,to be more competitive is the best way.So 0.18mm thickness is good for you.

00:21

IBR METAL ROOFING SHEET ROLLING MACHINE TO EGYPT BANGLADESH PAKISTANE

Specification

No	Item	Parameter
1	Decoiler	5tons electric decoiler (Hydraulic decoiler optional), manual one free
2	Forming speed	12-18m/min
3	Material	G235grade steel or galvanized coil
4	Thickness	0.3-0.7mm
5	Forming steps	14 +13forming steps
6	Shaft	Diameter 75mm, all solid
7	Rollers	High grade 45# steel with heat treatment and hard chrome coating 0.04-0.05
8	Main frame system	H350 steel. By blasting
9	Motor brand	shanghai lichao motor
10	Main forming power	5.5kw.
11	Pump Station Power	4Kw, or electric cutting for 3kw
12	Cutting Type	hydraulic cutting or electric cutting
13	Cutting Blade	Cr12Mov with hard treatment, HRC52-68
14	Control System	Delta PLC, Touch screen, Frequency converter
15	Measuring accuracy	Precision +/-1.5mm,with frequency converter
16	Transmission	By single chain 1’
17	Machine Dimensions	About 7.51.51.7m
18	Machine weight	About 5500 kgs
19	Voltage	380V,50hz, 3phase, as per request

MACHINE COMPONENT

Decoiler

1. Capacity: it bears 5tons .2. Material coil inner diameter: 450mm-550mm
 3. Max width: 1250mm

Guiding device

1. Advanced guiding device, ensure the steel roll in correct direction.2. Two layers all equip with pre cutting, save steel roll, no waste

Main forming machine

Refer to machine parameters

Hydraulic cutting

Hydraulic cutting system--Guide pillar type or Electric cutting. Speed more faster

Control system

1). Screen:Delta
 2). PLC: Delta
 3). Automatic length measurement
 4). Automatic quantity measurement

Hydraulic station

1).Adopt advanced hydraulic system , with cooling fan.
 2).Motor:4kw
 3).Hydraulic oil: 46#

Application

Packing & Delivery

One machine can be loaded in one 40GP container.2.All machines will be tested before delivery
We will send manual book and operating video with the machines to you.
All spare parts will be packed in one tool box.

Company Profile

00:00

02:25

Botou Golden Integrity Roll Forming Machine Factory is located in "the town of casting molds", enjoying convenient and highly effective transportation for being close to Tianjin Port, No.104 National Way, No.106 National Way and Jingjiu Railway. On the basis of traditional roll forming machines, we also develop new computer fully automatic roll forming machines, roof and wall panel forming machines, glazed tile forming machines, floor bearing plate forming machines, high-speed barrier devices, double color steel tile molding machines, C and Z steel machines, arch appliances, sandwich composite plate machines, shearing machines, bending machines, and heat insulation sandwich composite machines. Our products have reached the advanced level in the same industry. As beautiful appearance, reasonable structure, and tile-based standards of our products, they are popular among new and old customers. Products are sold to domestic enterprises.

FAQ

1. Does your company can customized my needed profile?Yes sir/Madam. Our machines are all customized according to customers' requests. Just provided me your needed profile drawing and we can give you our professional machine design solution.
 2. If i don't have profile drawing, but i want to buy one machine, can you help me?
 Yes sir/ Madam. If you don't have profile drawings, the solutions have:
 2.1 : Provide me with your profiles' pictures ;
 2.2 : Tell me your country and i will check if we sell similar / related profile machines to your there. I will recommend you
 related profile drawings.
 2.3 : Tell me any information you have and it will be helpful for me to clear your needed profiles. and then quote you.
 3. What your company advantages?
 Yes sir/Madam. Our advantages have :
 3.1: We are a 16 years big factory. We have abundant machine designing and making experience. We can give you the best
 machine solution.
 3.2: We have completed production system. And more than 20 sets of CNC machines which can support lots of machine
 orders' making and guarantee the delivery.
 3.3 : We have 20 years foreign trade exported experience. Our sellers abundant experience can guarantee you will have a
 pleasant purchase and use of the machine and after-sales experience. And cooperated with us , you can get more details about the machine, including those problems that you can't think of but we can think of, we can tell you to ensure that you can buy the most suitable machine for you.
 3.4 : We are a golden integrity roll forming machine company. About the after-sale services, no worries, we will responsible for you.
 4. Will i receive a good machine ? Same with my wanted ?
 Yes sir/Madam. We will do the machine according to your profile drawing . About the profile drawing, we will confirm with you again before producing your machine. Then, after the machine finished, we will test the machine and guarantee the machine you received is a good machine. Because after you satisfied with the machine, and then you pay balance.
 5. What is the machine minimum quantity?
 One machine is okay.
 6. What is your payment terms?
 6.1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.
 6.2 : We accept 100% L/C at sight
 6.3: We accept Western Union payments.
 6.4 : Other payment terms you want to pay, please let me know and i will check and reply you.
